Product Details
＋

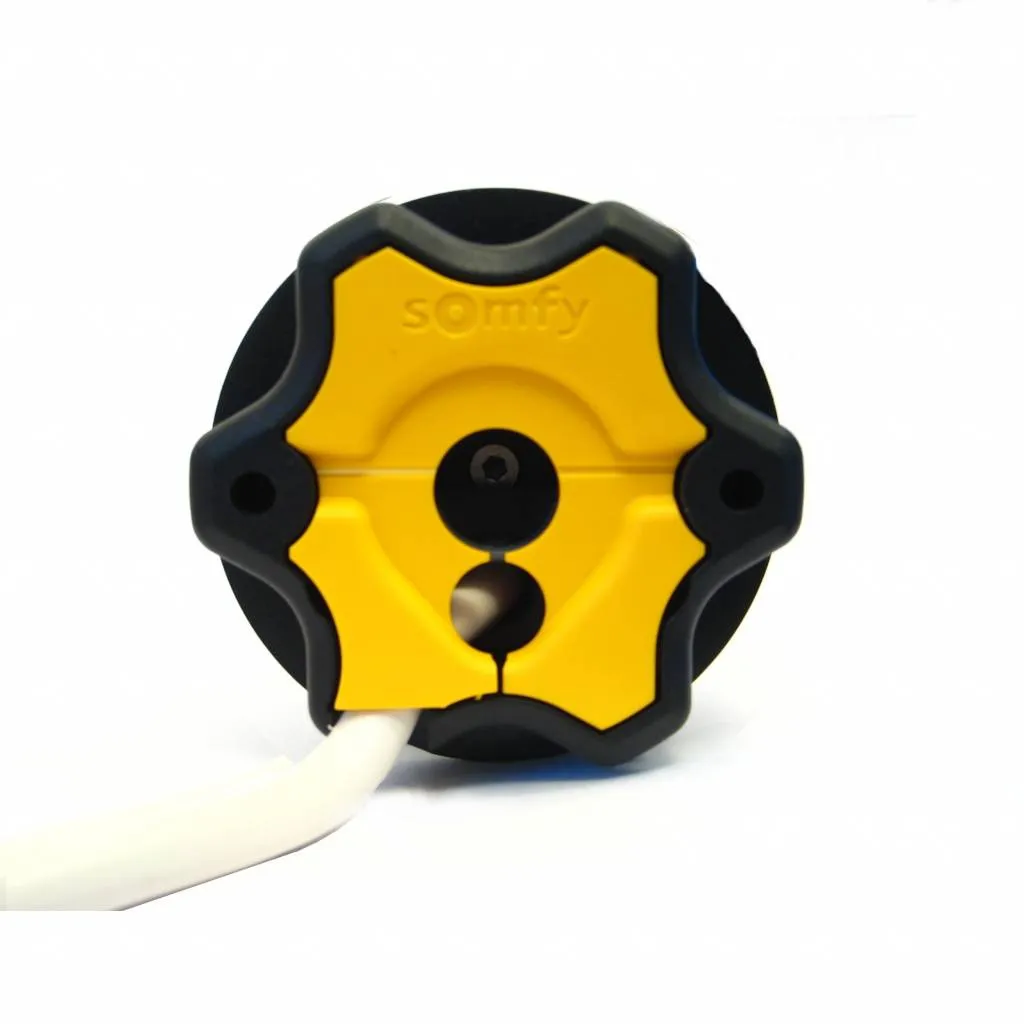

The proofed radio electronic motor, which protects your cassette awning for years.
Benefits
Comfort & Convenience
- Long range remote control doesn't require direct line of sight.
- Smartphone and tablet app available for quick and easy control even while away.
- Use natural voice commands to control RTS motorized solutions by adding
Sun Protection
- Instant protection from the sun's harmful UV rays.
- Remote access via simple to use app.
Outdoor Living Space
- Create a cool, comfortable environment for your family to enjoy on those hot summer days.
- State of the art sun and wind sensors react automatically to Mother Nature.
Support
Technical Information
TECHNOLOGY |
|
|---|---|
| Radio Frequency | 433,42 MHz |
| Capacity of memory | 12 different codes plus 3 wireless sensors |
| Coding | Rolling code 16 million of possibilities |
| Range in house | 20 m through 2 reinforced concrete walls |
ELECTRICAL |
|
|---|---|
| Antenna | Integrated |
| Consumption during operation | 270 W |
| Minimum voltage | 207 V |
| Maximum Voltage | 253 V |
| Rated current | 1.2 A |
| Nominal Voltage / Frequency | 230V 50Hz |
MECHANICAL |
|
|---|---|
| Capacity of the limit switch unit | 250 turns |
| Type of limit switch unit | Electronic |
| Type of head | Star head |
| Nominal Speed | 17 rpm |
| Nominal Torque | 40 Nm |
| Repeatabilty | <± 3 ° |
STANDARD |
|
|---|---|
| Approval | RCM |
| Protection Index | IP44 |
| Insulation class | Class |
CABLE |
|
|---|---|
| Plug in cable | Grey LT Plug |
| Cable type | PVC |
| Wire section | 0,75 mm² |
| Color | White |
| Wire Length | 3 m |
| Number of wires of the cable | 3 |
DIMENSION |
|
|---|---|
| Length (L1) | 675 mm |
| Basic crown for tube diameter | 50 x 1,5 mm |
| Weight | 2,85 Kg |
| Overall length (L3) | 683 mm |
| Riveting position distance (L2) | 660 mm |
