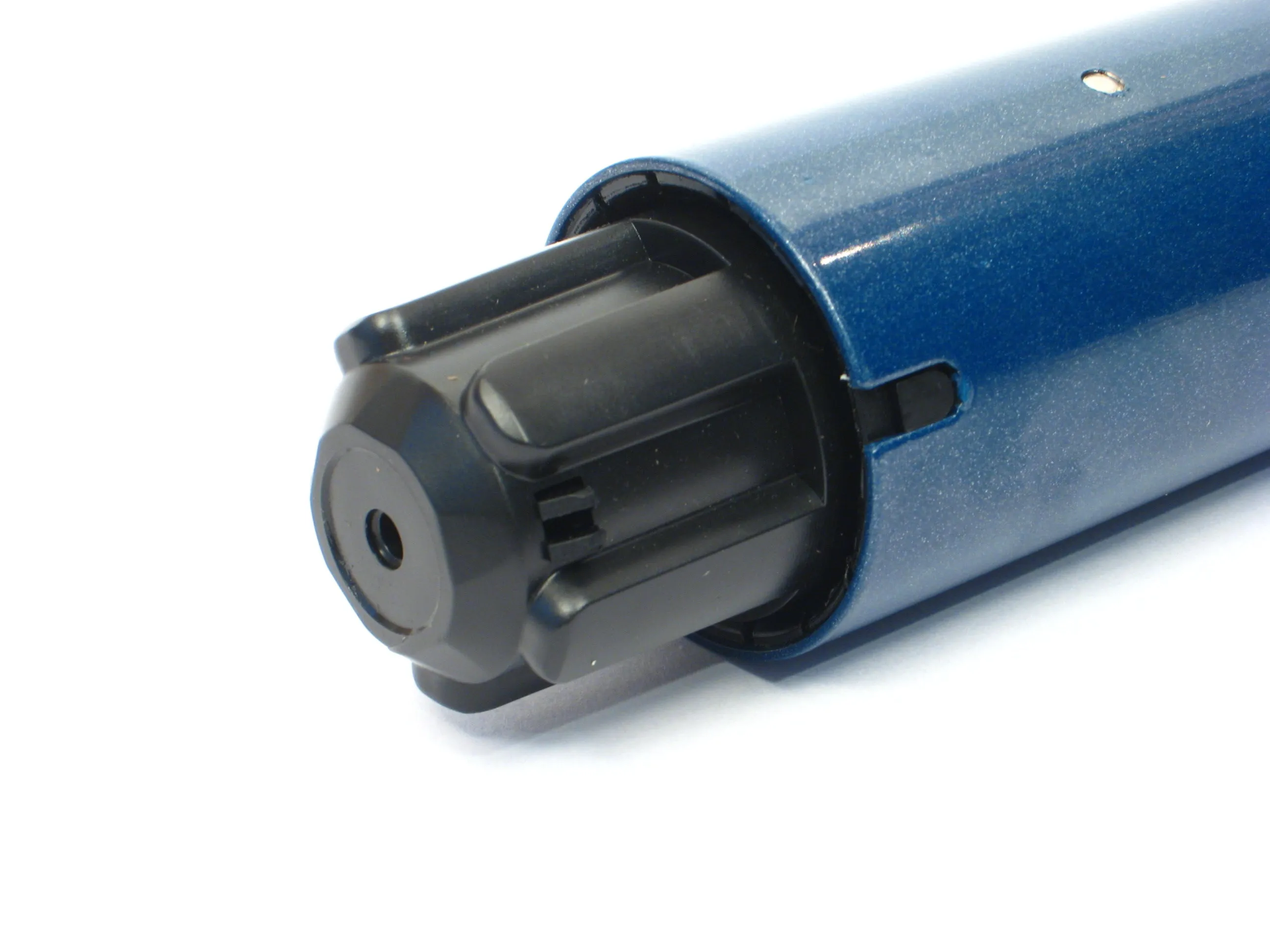

Product Details
＋
Motor with integrated radio control. Designed for all types of roller shutter. Automatically retains shutter raising and lowering settings for complete opening and perfect closing every time.
Comfort
- Choose you own favorite position
- Automatic protection of your home with the sun sensor
- Centralization
- Sun protection and temperature management thanks to sun sensor
Roller shutter protection
- Increase of the lifetime thanks to somfy drive control
- In case of obstacle in the down direction
- Protection in case of frost
Security
- Self lock (rigid links) of the roller shutter to increase security ,and presence simulation
45mm diameter
Support
Technical Information
TECHNOLOGY |
|
|---|---|
| Radio Frequency | 433,42 MHz |
| Capacity of memory | 12 different codes plus 3 wireless sensors |
| Coding | Rolling code 16 million of possibilities |
ELECTRICAL |
|
|---|---|
| Antenna | Integrated antenna |
| Consumption during operation | 270 W |
| Minimum voltage | 207 V |
| Maximum Voltage | 244 V |
| Rated current | 1.2 A |
| Nominal Voltage / Frequency | 230V AC - 50Hz |
MECHANICAL |
|
|---|---|
| Capacity of the limit switch unit | 200 turns |
| Type of limit switch unit | Electronic |

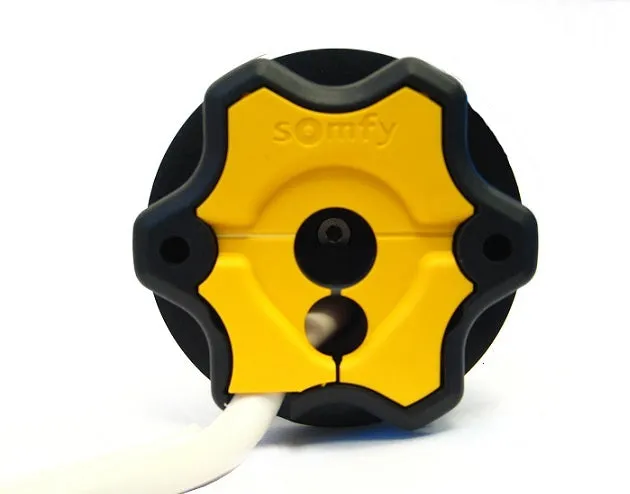

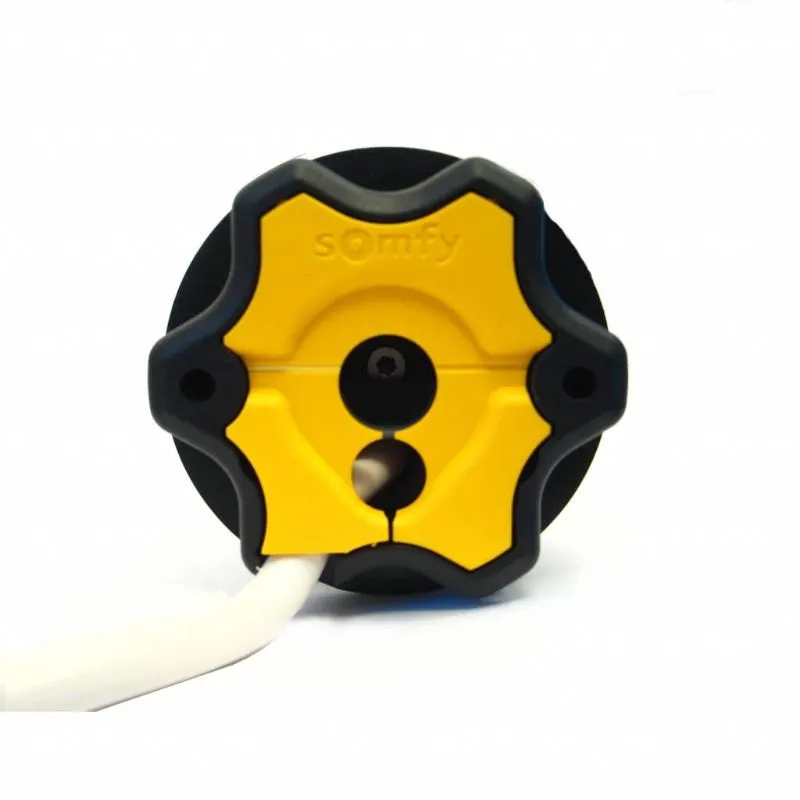

| Type of head | Star |
| Nominal Speed | 17 rpm |
| Nominal Torque | 40 Nm |
| Repeatabilty | <± 3 ° |
STANDARD |
|
|---|---|
| Approval | RCM |
| Protection Index | IP 44 |
| Insulation class | Class I |
CABLE |
|
|---|---|
| Cable type | PVC |
| Wire section | 0,75 mm² |
| Color | White |
| Wire Length | 3 m |
| Number of wires of the cable | 3 |
DIMENSION |
|
|---|---|
| Length (L1) | 675 mm |
| Basic crown for tube diameter | 50 x 1,5 mm |
| Weight | 2,8 Kg |
| Overall length (L3) | 683 mm |
| Riveting position distance (L2) | 660 mm |
