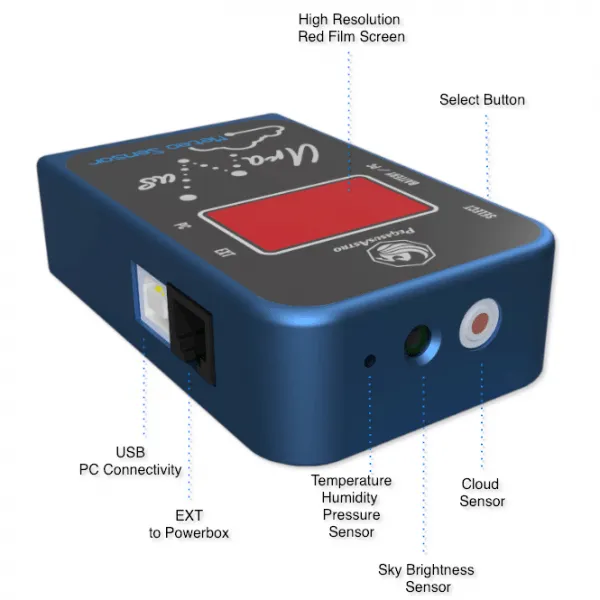

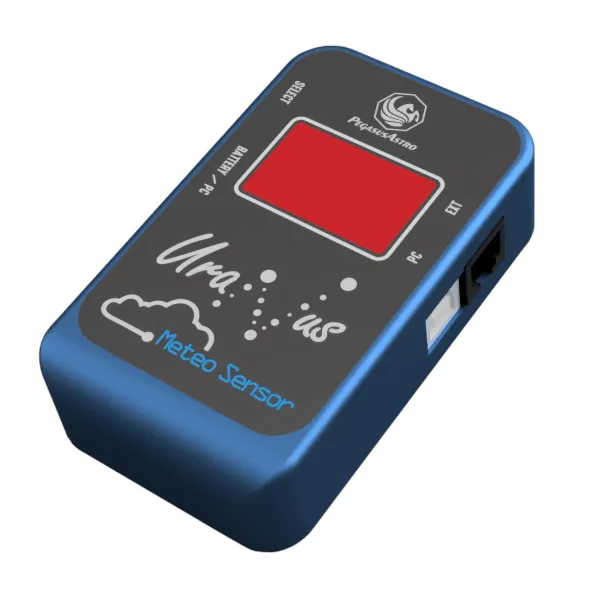

Pegasus Astro Uranus Meteo Sensor

Device “talks” every second (configurable time interval) with a network of embedded sensors and reports the following information on screen display.

Ambient Temperature (°C or °F)
Relative Humidity %
Dew Point (°C or °F)
Absolute Atmospheric Pressure – Sea Level Pressure (hPa)
Relative Atmospheric Pressure (hPa)
Altitude (m or ft.)
Cloud Coverage (Cloud Index)
Cloud Temperature
Cloud Height

Measurement of the sky brightness can be achieved if you keep the right button pressed for more than a second.

Visual Sky Brightness (MPSAS, NELM and Bortle Scale)

A highly digital sensitive sensor measures the brightness of the night sky at a 30° angle. You can determine the sky’s brightness within seconds. The device displays three different scales on-screen (magnitudes per arc second², visual mags, lux). Compare the sky brightness at different sites or documentation of progressive light pollution in your area. Additional calculations

Moon Phases
Astronomical Sunrise & Twilight Time based on GPS coords

On Screen Display Menus

Uranus Meteo Sensor displays all sensor readings on different menus that can be accessed by the two buttons on the top of the handheld device

Imperial or Metric system display can be configured via the Unity platform software

Other Key Features

Memory Banks

The device has an internal memory able to store up to 1000 records. Each record includes all sensor data and GPS coordinates. The software allows, via USB, to view and export all of these data to Unity Platform maps, keeping historic records of visited places.

Handheld or PC

Uranus Meteo Sensor can be used as a handheld device or plugged via a USB2 cable to your PC or Laptop. The enclosure has 2 x 3mm holes at the bottom to securely lock the device on your telescope or in your observatory.

GPS port

GPS port allows you to output full GPS NMEA messages to a serial device. The pinout is compatible with 10Micron mounts.

Rechargeable battery

The device has a NiMH rechargeable (through USB-C port) battery pack.

Technical Specifications

Size	93 x 55 x 24 mm
Weight	120 grams
Battery	NiMH 600mA rechargeable
Communication	USB type C socket (also for battery charging)
GPS Output	NMEA 6C6P socket (10Micron pinout compatible)
Buttons	2 buttons on top
Reset Button	On the side of the device
Power Consumption	3.3V / 60mA during operation, 10μA during sleep
Temperature Sensor	-40 to 85°C, Accuracy - 0.5° C
Humidity Sensor	0 % to 100 % , -3 % Relative Humidity
Cloud Sensor	IR Sensor 60° wide
Light Sensor	Digital CMOS integrated circuit. Measures visible plus infrared light. 600M:1 Dynamic Range
GPS Module	High sensitivity GNSS Module with 88 Channels, Ultra-Low Consumption Fast Positioning
Pressure Sensor	Pressure: 300 to 1100 hPa
Operating Temperature	-40° to 60 °C
Operation	Fully Digital
